Accessories Grease Pumps
Metal drum cover, Follower plate with rubber edge, Plastic bung adapter for fixation of pumps

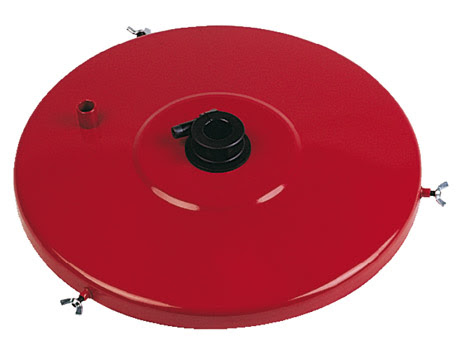

Metal Drum Cover
Metal drum cover, available in different dimensions to suit to the various types of grease drums, including butterfly screws for the fi xation of the cover on the drum as well as bung adapter for the fixation of the pump in vertical position.
Follower Plate With Rubber Edge
Follower plate with rubber edge, available in different dimensions to suit to the various types of grease drums. The follower plate causes a constant grease level inside of the drum and helps to avoid any air pockets inside of the grease close to the suction tube as well as any disposals of grease on the inner surface of the drum.
Art. 4328
Plastic bung adapter for fixation of pumps, 2” BSP (M) x 28 mm.
Art. 4340
Plastic bung adapter for fixation of pumps, 2” BSP (M) x 40 mm.
Art. 4341
Plastic lock ring for bung adapter, 2” BSP (M), for art. nos. 4328 and 4340.
Art. 4326
Hose, length 1200 mm, with connector for compressed air. This hose can be connected to the follower plates for 180 kg – drums and allows to set compressed air pressure under the follower plate when it has reached the low level in order to take it out of the drum again more easily.
Art. 4309
Metal drum cover, including metal bung adapter and metal counter-ring, suitable for the use of pneumatic grease pumps of series “Power Bull” on 180 kg – drums. Total diameter 600 mm, diameter of bore for suction tube in bung adapter of 50 mm. Suitable for art. nos. 4048 – 4049 – 4050 – 4051 – 4052.
Art. 4309/70
Metal drum cover such as art. no. 4309, but including bung adapter with diameter of bore for suction tube of 70 mm. Suitable for art. nos. 4046 and 4047.
Art. 4320
Follower plate with rubber edge, for applications with pneumatic grease pumps of series “Power Bull” on 180 kg – drums. The follower plate causes a constant grease level inside of the drum and helps to avoid any air pockets inside of the grease close to the suction tube as well as any disposals of grease on the inner surface of the drum. Total diameter of follower plate 590 mm, diameter of metal disc 540 mm, diameter of bore for suction tube 50 mm. Suitable for art. nos. 4048 – 4049 – 4050 – 4051 – 4052.
Art. 4320/70
Follower plate such as art. no. 4320, but diameter of bore for suction tube 70 mm. Suitable for art. nos. 4046 and 4047.
Art. 4343/50
Metal bung adapter for the fixation of pumps, series “Power Bull”, 2” BSP (M) x 50 mm, on drums. Suitable for art. nos. 4048 – 4049 – 4050 – 4051 – 4052.
Art. 4343/70
Metal bung adapter for fixation of pumps, series “Power Bull”, 2” BSP (M) x 70 mm, on drums. Suitable for art. nos. 4046 and 4047.
Art. 4343/71
Metal lock ring for bung adapter, 2” BSP (M), for art. no. 4343/70.
Art. 4342/50
Metal flange plate for fixation of pumps, series “Power Bull”, with suction tube diameter 50 mm, without bung adapter. Suitable for art. nos. 4048 – 4049 – 4050 – 4051 – 4052.
Art. 4342/70
Metal flange plate for fixation of pumps, series “Power Bull”, with suction tube diameter 70 mm, without bung adapter. Suitable for art. nos. 4046 and 4047.
Accessories Grease Pumps
Art. Suitable for external drum diameters of Bore suitable for suction tube diameter of Suitable for drums of Weight 4301 240-283 28 mm 18 kg 2,4kg 4302 290-330 28 mm 20 kg 2,6kg 4302S 310-350 28 mm 25 kg 2,6kg 4305 360-400 28 mm 50 kg 2,8kg 4305L 348-388 28 mm 50 kg 2,8kg 4305S 410-450 28 mm 50 kg 2,8kg 4305/TP 360-400 28 mm 50 kg 2,8kg 4308 560-600 28 mm 180 kg 3,2kg 4308/TP 560-600 28 mm 180 kg 3,2kg
